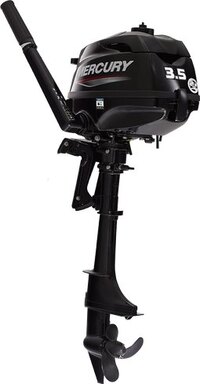

Mercury - FourStroke 3.5hp

Specifications

Model	FourStroke	Category Name	Outboard Engines	Stock Number	MO23075
Sale Type	New	Manufacturer	Mercury	Color	Phantom Black
HP / KW	3.5 / 2.6	Ignition	CDI w/electronic spark advance	Starting	Manual
Steering	Tiller with 360° turning	Gear Shift	F-N	Engine Type	1 cylinder
Fuel System	Carbureted	Trim System	4 position	Shaft Length	15" / 381 mm - 20" / 508 mm
Cooling System	Water-cooled with thermostat	Exhaust System	Above prop	Gearcase Ratio	2.15:1
Trim Positions	4	Bore And Stroke	2.16 x 1.42" / 55 x 36 mm	Recommended Oil	Mercury FourStroke Oil 10W-30
CARB Star Rating	3	Gearcase Options	Standard	Recommended Fuel	87 octane / up to 10% ethanol
Full Throttle RPM	5000-6000	Displacement (CID/CC)	5.2 / 85	Fuel Induction System	2-valve pushrod (overhead valve)
Integrated Fuel Tank (gal / L)	0.3 / 1.1	Shallow Water Trim Range (degrees)	16	Dry Weight *Lightest Model Available	41 lbs / 18 kg
Engine Protection Operator Warning System	Over-rev	Price	Contact for price CAD

Description

2.5-20hp

Output far beyond its size

Put amazing power in the palm of your hand. These compact outboard motors take you to the fun, the fish, or whatever floats your boat – quickly and reliably. Enjoy quick acceleration to go with exhilarating speed. Easy to install and operate, with reliable starting, low vibration, and instant throttle response. It's worry-free boating at its best.

ENGINE DETAILS

FourStroke 3.5hp

Delivers lightweight, portable power and thrust for exact operation. Perfect for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.
