LS Tractor MT235HEC – 35HP

  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
  • LS Tractor MT235HEC – 35HP
In Stock
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Compact

The MT235 E Geared (35HP) features an economy cockpit with a premium seat, rubber floor mat, and more are standard.

Specifications
Model
MT235HEC – 35HP
Category Name
Tractors
Year
2024
Sale Type
New
Manufacturer
LS Tractor
PTO HP
28.0 HP
ENGINE HP
35.0 HP
HITCH LIFT
1,808 lbs.
LOADER LIFT CAPACITY
2,178 – 2,185 lbs.
features

LEFT AND RIGHT CAB DOORS

Go from 2WD to a 4WD with a simple move of a lever.LS Tractor MT235HEC – 35HP

3 RANGE HYDROSTATIC TRANSMISSION

Provides Comfort And Excellent Controllability Of Tractor MovementLS Tractor MT235HEC – 35HP

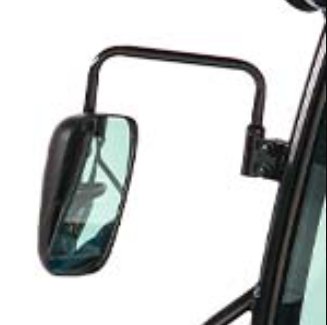

3 STANDARD DUAL MIRRORS

Provide Added Visibility  LS Tractor MT235HEC – 35HP

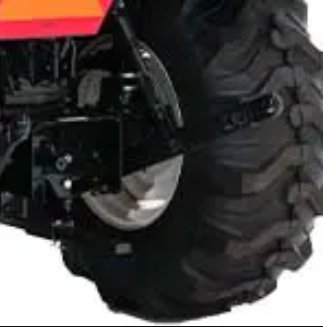

3 STANDARD DRAWBAR

Provides Value And Enables Trailering etc.   LS Tractor MT235HEC – 35HP

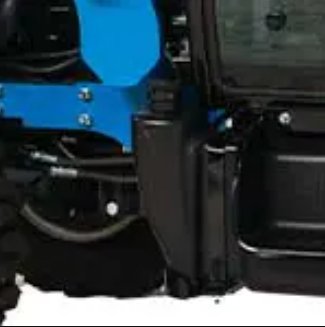

3 GROUND LEVEL FUELINGLS Tractor MT235HEC – 35HP

Provides Easy Access



STANDARD GRILLE GUARD WITH LOADER

Provides Added ProtectionLS Tractor MT235HEC – 35HP

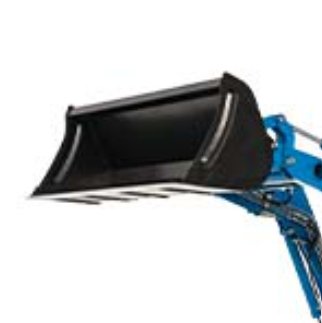

HIGH-CAPACITY LOADER

With High Lift Height And Standard Skid Steer CouplerLS Tractor MT235HEC – 35HP

STANDARD INTEGRATED JOYSTICK

Mid Mount Valve, Providing Deluxe Fit And FinishLS Tractor MT235HEC – 35HP

ELECTRONIC PTO

For Ease Of UseLS Tractor MT235HEC – 35HP
engine
Type
Vertical Water-Cooled 4Cycle Diesel Engine
PTO HP
28
Model (Tier 4)
L3C19-T
Engine HP (Gross)
35
Rated Speed (RPM)
2,600
Displacement (cu. In.)
114.7
Fuel Tank Capacity (gal)
12.4
drive train
Brakes
Wet, Multi-Disc
Steering
Hydrostatic Power Steering
Transmission
HST
No. Of Speeds
3 Ranges (HST)
pto
Type
Independent
Mid RPM
2,000 (Option)
Rear RPM
540 (Standard)
hydraulic system
Control System
Position/Draft
Total Flow Gpm
13.7 (HST)
Steering Pump (gpm)
5.5(HST)
Category, 3 Pt Hitch
CAT 1
Implement Pump (gpm)
8.2
Hitch Lift Capacity (lb)
1808
dimension
Wheelbase (in.)
69
Height To Top Of ROPS(in.)
86.6
Overall Width With Tires (in.)
62
Overall Length Frame To Link (in.)
128.3
tire size
Ag Front/Rear
7 – 14 / 11.2 – 24
IND Front / Rear
25 x 8.5 – 14 / 43 x 16 – 20
Turf Front / Rear
25 x 8.5 – 14 / 41 x 14 – 20
options

Telescopic Link Arms
Side Step – RH
7 Pole Connector
Horn
Sun Screen
Interior Rear View Mirror
External Position Lever
Beacon Lamp
Work Light
Audio Assy – without Bluetooth
Audio Assy – Bluetooth
Rear Wiper
Mid PTO
Remote Valve – 2 Pair (1 STD. 1 Detent)



attachments

FRONT END LOADER – LL3116

  • Bucket (in): 66
  • Maximum Lift Height (in): 92.7 – 94.4
  • Clearance with Attachment Dump (in.) 61.7 – 64.4
  • Reach at Maximum Height (in): 15 – 15.4
  • Maximum Dump Angle (deg.): 48 – 52
  • Maximum Rollback Angle (deg.): 43-41
  • Digging Depth (in): 4.3
  • Overall Height in Carry Position (in): 49.1 – 51.4
  • Lift Capacity(At Pivot pin) (lbs.) 2,178 – 2,185
  • Breakout Force(At Pivot pin) (lbs.): 3,450 – 3,612
  • Approx. Weight (Loader w/o Bucket) (lbs.): 717

BACKHOE – LB2104

  • Digging Depth (in): 89.7
  • Reach From centerline of swing Pivot (in): 125.2
  • Loading Height (in): 72.4
  • Swing Arc (deg.): 180
  • Transport Height (in): 83.5
  • Bucket Rotation (deg.) :180
  • Stabilizer Spread (Down Position) (in): 68.7
  • Stabilizer Spread (Up Position) (in): 46.4
  • Bucket Digging force (lbs.): 2,679



literature
Name Link
Brochure Download
LS Model Comparison Download
Competitive Comparison Download
