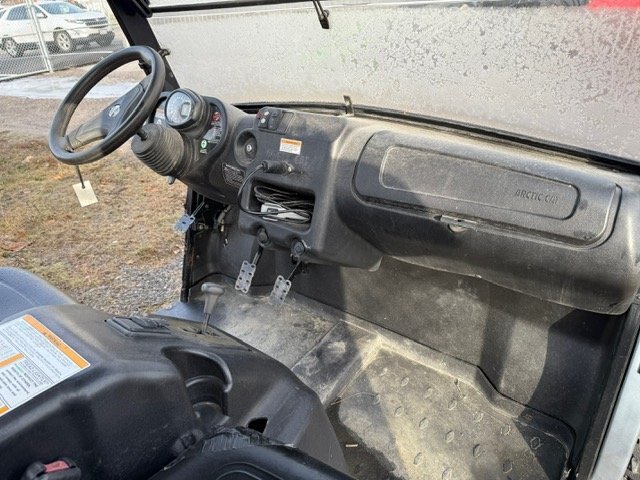

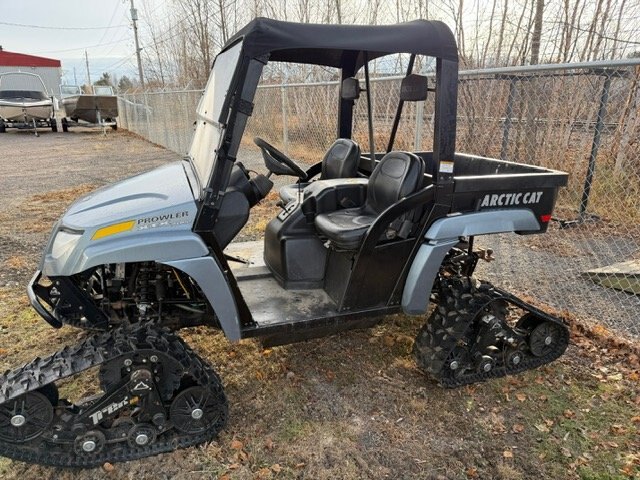

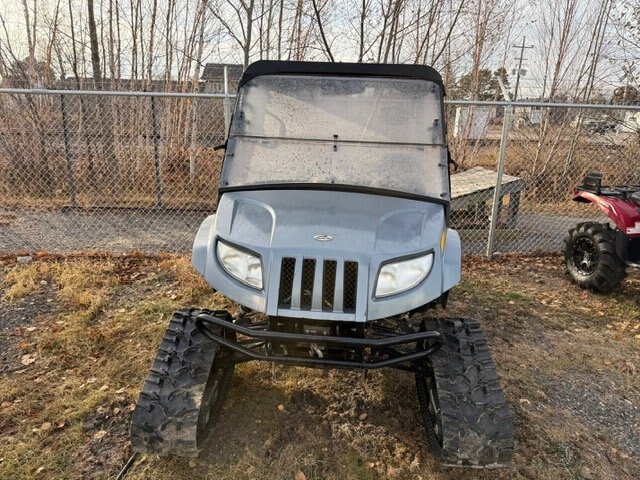

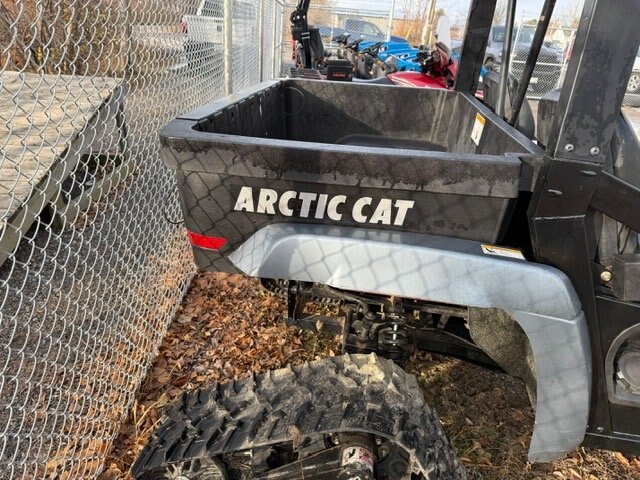

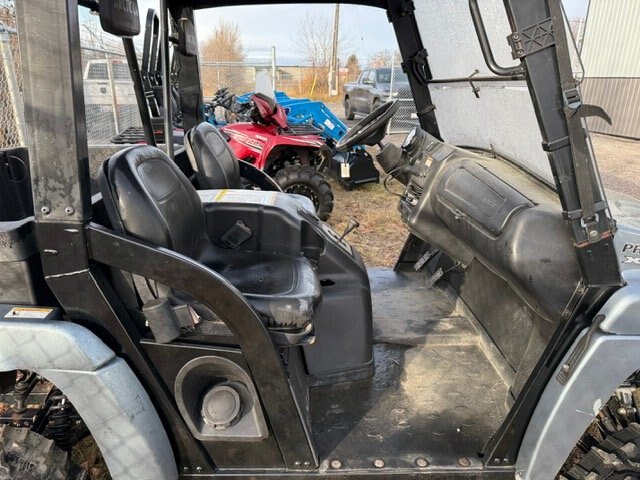

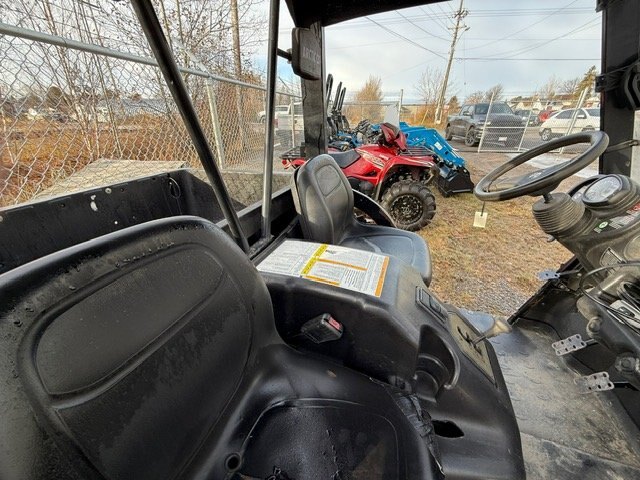

2009 ARCTIC CAT PROWLER 700 XTX W/TRACKS

The 2009 Arctic Cat Prowler 700 XTX features a 695cc, single-cylinder, liquid-cooled engine with Electronic Fuel Injection (EFI) and a Continuously Variable Transmission (CVT). It has a selectable 4x2 / 4x4 driveline, hydraulic disc brakes, and independent double A-arm suspension with 10 inches of travel. Key specifications include a 75-inch wheelbase, a 1,250-pound dry weight, and a 1,500-pound towing capacity.

Engine and drivetrain

• Engine: 695cc, 4-stroke, single-cylinder, liquid-cooled SOHC
• Carburetion: Fuel Injected
• Transmission: Continuously Variable (CVT) with high/low range and reverse
• Driveline: Selectable 4x2 / 4x4
• Differential: Electronic locking front differential and a locking rear differential

Suspension and brakes

• Front Suspension: Independent Double A-Arm with 10 inches of travel
• Rear Suspension: Independent Double A-Arm with 10 inches of travel
• Front Brakes: Hydraulic Disc
• Rear Brakes: Hydraulic Disc

Dimensions and capacity

• Wheelbase: 75 inches (1905 mm)
• Dry Weight: 1,250 lbs (556.8 kg)
• Fuel Capacity: 8.2 gallons (30 liters)
• Towing Capacity: 1,500 lbs (680.4 kg)
• Front Tires: 26 x 9-14
• Rear Tires: 26 x 11-14

Other features

• Seating: 2
• Cargo Bed: Standard, with a 1,500 lb towing capacity
• Lighting: Halogen headlights
• Instrumentation: Digital instrumentation, tachometer
